Rotary external heating type pyrolysis carbonization unit

Adopt self-developed joint carbonization technology and equipment with intellectual property rights to systematically process the drying and carbonization of biomass raw materials, so that water evaporation, drying reduction, pyrolysis and carbonization, high temperature sterilization, and heat utilization of volatile products , The final output can be used as a soil amendment and carbon-based fertilizer carrier to be used in agriculture to realize the safe disposal and resource utilization of waste

Category:

Pyrolysis And Carbonization Products

Retail price

0.0

元

Market price

0.0

元

Number of views:

1000

Product serial number

Quantity

Stock:

High quality waste scrap tire recycle pyrolysis plant to fuel oil

Product Description

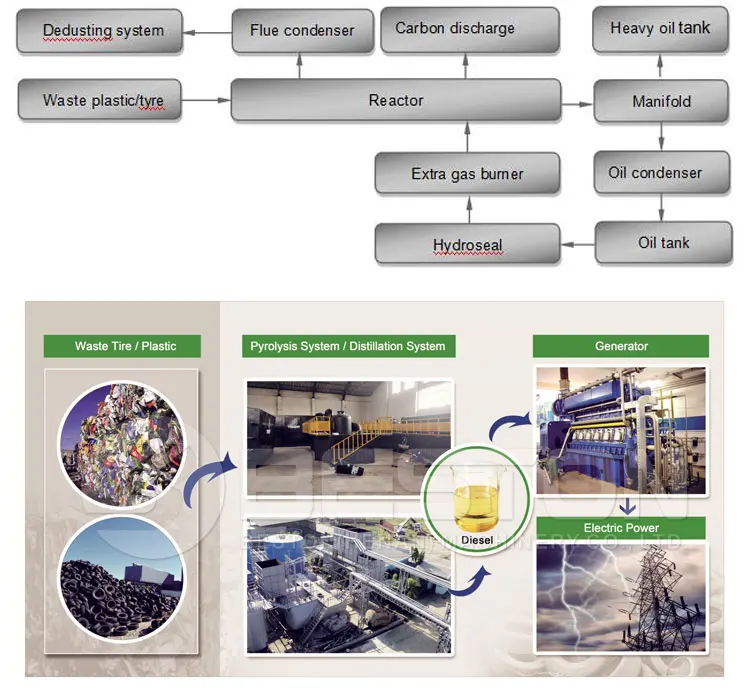

The waste tire rubber pyrolysis method can pyrolysis the raw materials of the waste tire rubber, so that the waste tire rubber can exert its own value, and then the waste is not waste. After the pyrolysis reaction, fuel oil, carbon black, steel wire, non-condensable but flammable gas can be obtained. The pyrolysis equipment is divided into batch type, continuous type, two-to-one type, multi-group type, etc. If you want to know what kind of product is best for you, please click here.

Data	BLJ-6	BLJ-10	BLJ-16	BLL-20
Daily Capacity	6MT	10MT	15-20MT	20-25MT
Working Method	Batch		Semi-Continuous	Fully Continuous
Operating Pressure	Constant pressure
Reactor rotate speed	0.4turn/minute			Not rotary type
Total Power	24kw/h	30kw/h	54kw/h	77.5kw/h
Reactor size	D2.2*L6.0m	D2.6*L6.6m	D2.8*L7.1m	L12.5W2.2H2.5m
Space for machine(LWH)	301010m	301010m	401010m	452510m

Substances brought to you by our pyrolysis equipment

NO.	Name	Usage
1	oil	• can be sold directly.
		• Reprocessed into diesel and gasoline by use oil distillation machine.
		• can be used as fuel.
2	Carbon black	• can be sold directly.
		• Reprocessed into high quality carbon by the carbon black grinding equipment.
		• make carbon brick by briquetting equipment.
3	Steel wire	• can be sold directly.
		• make steel bloom by hydraulic press-packing
4	Combustible gas	• can be as fuel heating the reactor
